Filler Panels for Compass installations

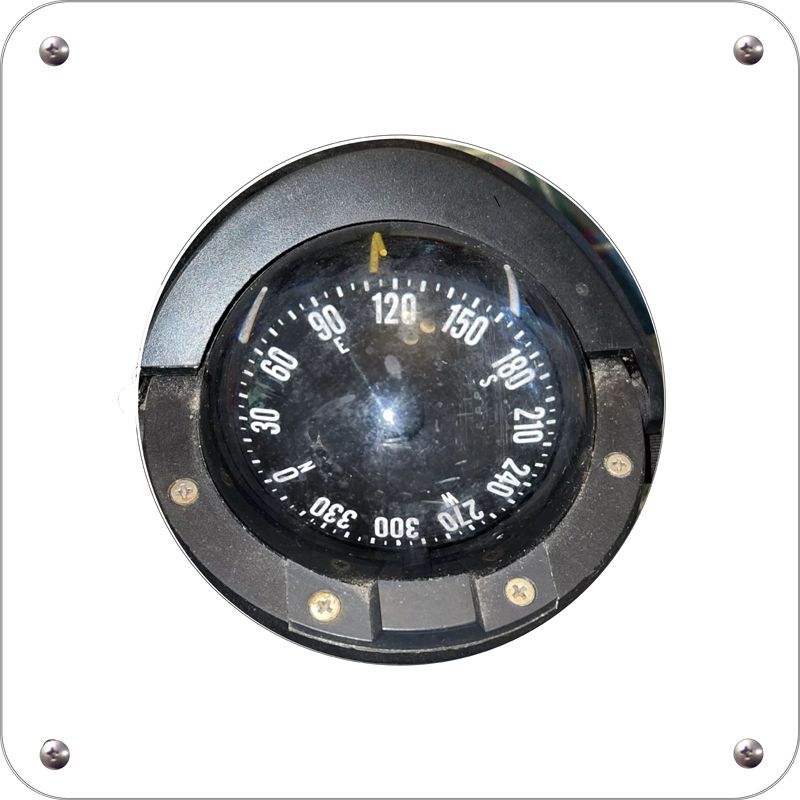

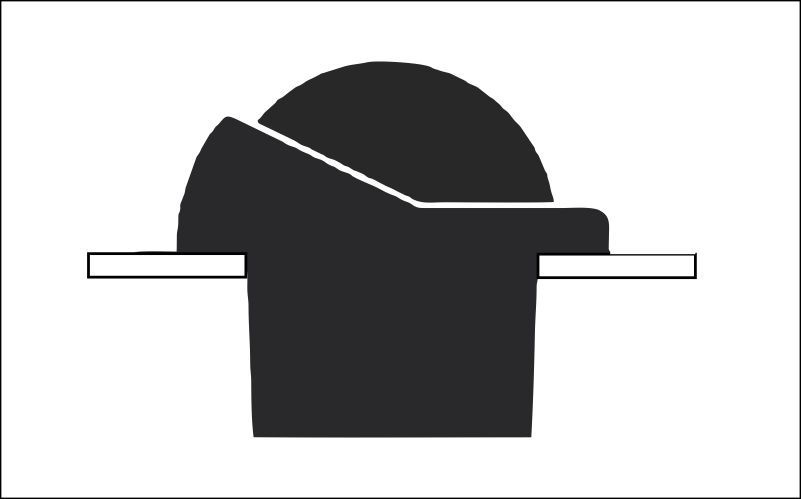

Boat Compass Adapter Panel - - flush mount filler panel for some of the most popular boat compasses. Custom made to order.

Cut-to-size 1/4" thick modified acrylic with model specific cutouts.
Save hours of your valuable time by using our standard size filler panels.
Available in either a white or black. Reversible: one side is matte finish, the other side a gloss finish. Choose the one that fits your console.
Material is UV stabilized and withstands 175-degree F temperatures without deforming.
Standard adapter plates for models from Ritchie� and similar manufacturers.

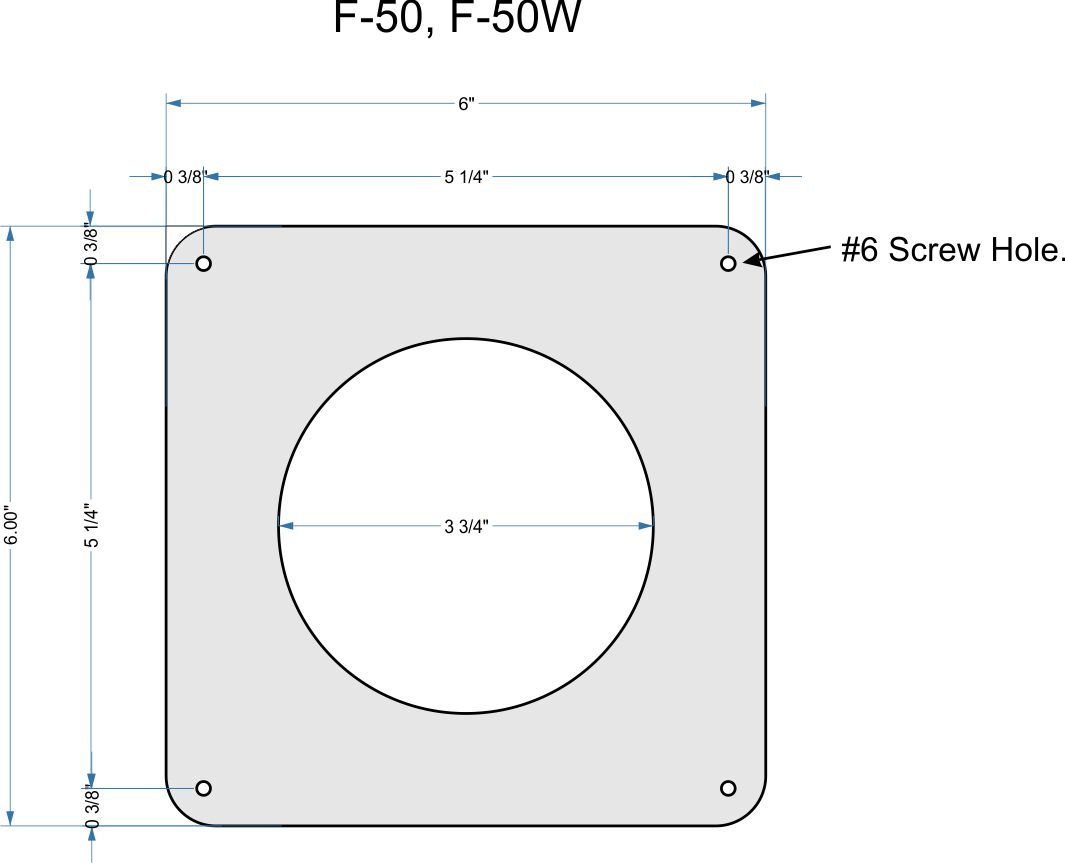

- Ritchie Explorer^TM F-50 or F-50W.
- Ritchie Helmsman^TM HF-742, HF-742W, HF-743. HF-743W.
- Richie Super Sport ^TMSS-1002, SS-1002W .
All adapter plates have holes for #6 screws or bolts to secure to your base panel. If you do not require holes, choose "No Mounting Holes" in the dropdown box.
All Adapter Plates have a wire notch to allow pulling electric lines to the head.
To mount the Adapter Plate, use oval head #6 screws making sure you use either non-magnetic Stainless Steel or Brass Screws.
Before ordering you must check the required cutout size in your Compass manual and match it to our drawings. We cannot be responsible for those instances when manufacturers have changed specs without notice.
Standard overall size of the panels are approximately 1" per side larger than the outside diameter of the Compass to cover the unsightly edges of the old console holes.
Each panel is made to order. Made in USA.

Too large? Too Small? More Holes? Without holes for adhesives? If you need a custom plate, please see item # J0562 or use the Request Custom Quote link at top of this page or in the menu bar of a mobile device.

Also referred to as our Compass filler plate or flush mount plate.
